HARDWARE - SCA CONTROL STATION

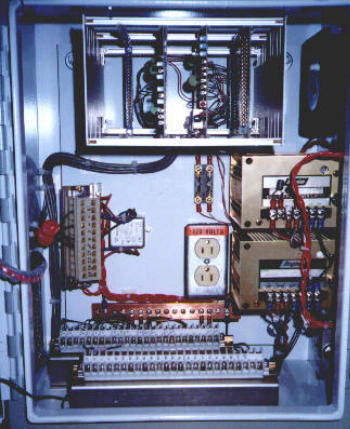

The SCA control station is a 20" high x 16" wide x 10" deep 14 gauge Nema-12 enclosure, and is usually mounted on the floor for traveling table grinders, and on the carriage for traveling carriage grinders. It typically contains the crowner summing board, LVDT conditioner board, power supplies, indicating lights, digital volt meter, cables, and other miscellaneous items. The cabinet is equipped with a circulating fan and filtered louvers for cooling. Terminal strips are provided for all external connections. Auxiliary power outlets are standard along with an EMI filter and circuit breaker.
